HOWO 7 8×4 dump truck (21~30m³)
  • The dump truck is developed and manufactured jointly by Haoruitong and Sinotruk in virtue of more than 40 years experience of Sinotruk in developing heavy duty trucks. This special purpose truck comes with a powerful engine which is available in 266-371hp. It also employs reinforced frame with 16t drive axle, thus dramatically improving loading capacity.



    HOWO 7  8×4 dump truck (21~30m³)

    Weight Parameter

    Curb mass(kg)

    15830

    Full loaded mass(kg)

    31000

    Dimension Parameter

    External Size(L*W*H) mm

    10745*2496*3668

    Wheel Base(mm)

    1800+3800+1350

    Performance Parameter

    Max.Speed

    (km/h)

    90

    Economic Speed(km/h)

    65~80

    Max.Grade Ability(%)

    34

    Engine

    Horsepower

    371/420

    Type

    water-cooled, turbo-charged & inter-cooled, direct injection

    Rear Axle

    Type

    HC16

    Rear Axle Ratio

    4.8

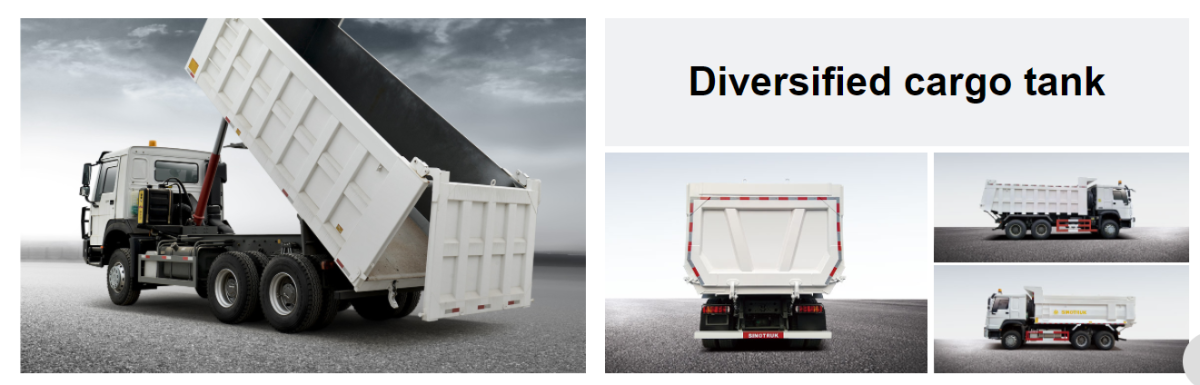

    Carriage

    Carriage Internal Dimensions(mm)

    6200~8800*2300*1500

    Cubage(m³)

    21~30

    Steel thickness of Carriage(mm)

    Floor:8mm/ Side:4mm

    (Mn16)

    Fuel Tank (L)

    300

    Tire

    12.00R20/295/80R22.5
